pbz-260s automatic vial/ampoule blister packing production line video
  • >
  • >
  • >
  • >

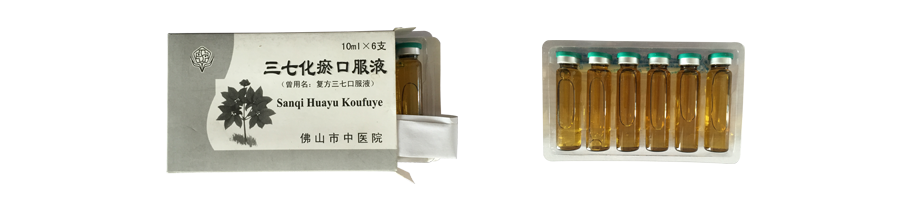

sample

according to the latest demand of the market,scientific research technicians of our company designed and developed the line machine,which is specially for vial/ampoule double feeding blister and packing into cartons. the line machine integrate blister forming,vial/ampoule feeding together,detection,rejection and carton packing into an organic whole,which with compact structure,simple operation and plc touch screen adopted.change parts can specially designed according to customer's requirement.

overview
innovation
parameters

pbz-260s main technical parameter


main technical parameter for blister machine

capacity(cycle/min)

25-30

packing material

range of stroke(mm)

40-120

pharmacy pvc(mm)

(0.2-0.4)×260

ptp alu foil(mm)

(0.02-0.05)×320

clean compressed air(pressure)

0.5~0.7mpa

air consumption( m³/min)

≥0.4

power

ac380v 50hz 9kw

water chiller for moulds

recycle water with 60l/h consumption

overall dimension(l×w×h)

4420×710×1700

net weight

1700


main technical parameter for cartoninq machine

capacity (cartons/min)

30-80

packing material

box dimension(l×w×h)

(75-180)×(80-120)×(15-65)

cardboard of box required

280-350

leaflet dimension(l×w)

(90-260)×(90-180)

leaflet paper required

50-70



clean compressed air(pressure)

0.5~0.7mpa

air consumption

≥0.3

power

ac220v 50hz 1kw

overall dimension(l×w×h)

3650×1240×1610

net weight

1700
